PUSH BUTTON CLB CIRCUIT BREAKER

SPECIFICATIONS

⚡ Amperage: 7A
🔋 Maximum Voltage: 32V DC

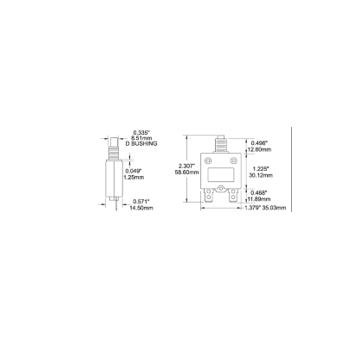

🛠 Mounting: Panel Mount 3/8-27 UNS
🛡 Circuit Breaker Type: Thermal trip, manual push-button reset only
🔌 Terminal Type: 1/4 Male Quick Connect
💥 Interrupt Capacity:

• 3000A @ 14.7V
• 2500A @ 28V
  🌡 Minimum Operating Temperature: -10° C
  🌡 Maximum Operating Temperature: 60° C
  🔩 Screw Terminal Torque: 6 in-lb (0.68 Nm)
  ⚖ Weight: 0.06lb (0.03 kg)
  📦 Package Type: Plastic wrapped with seals

🔧 Product Type: Electrical

🏢 Brand: Blue Sea
